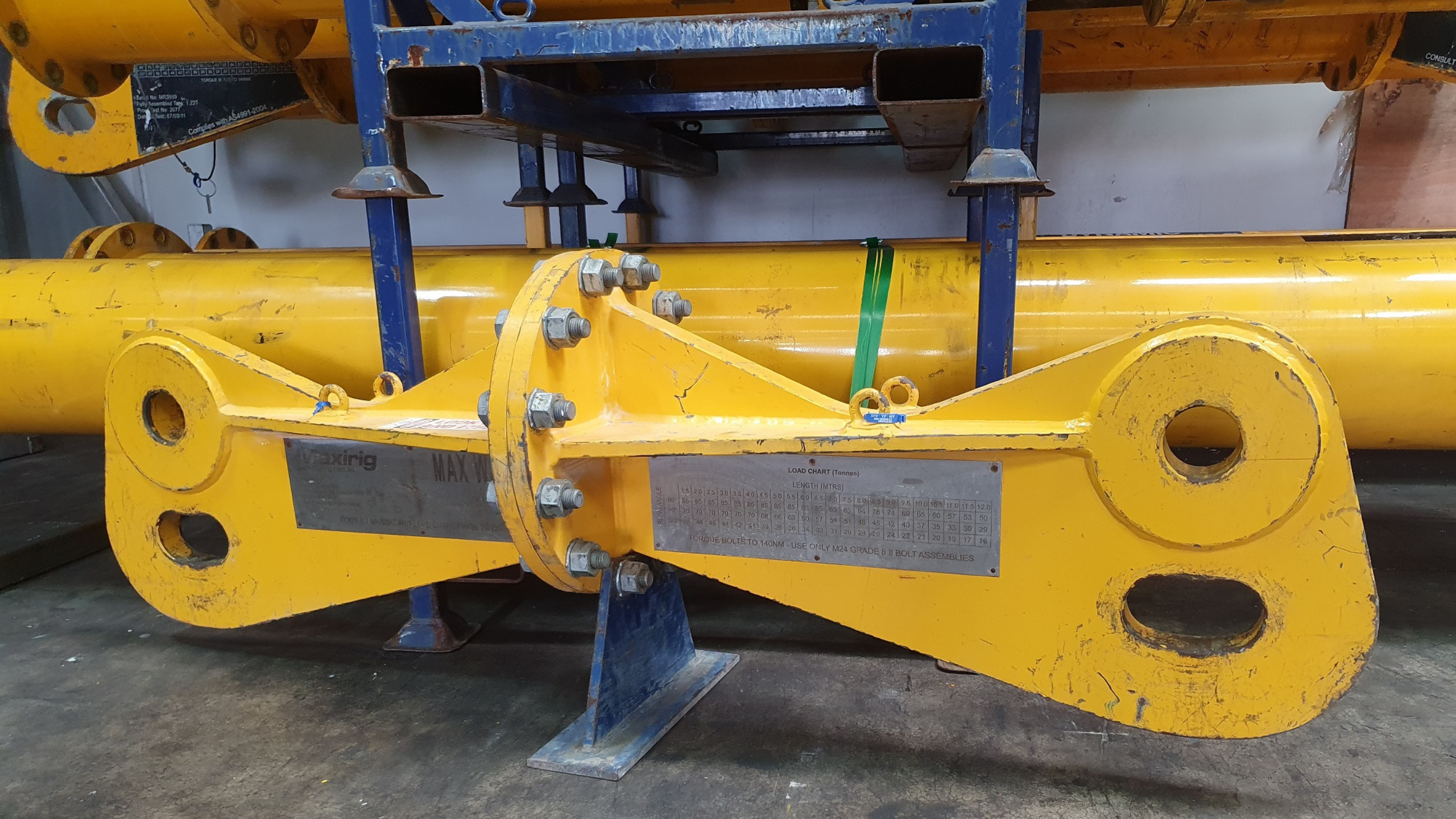

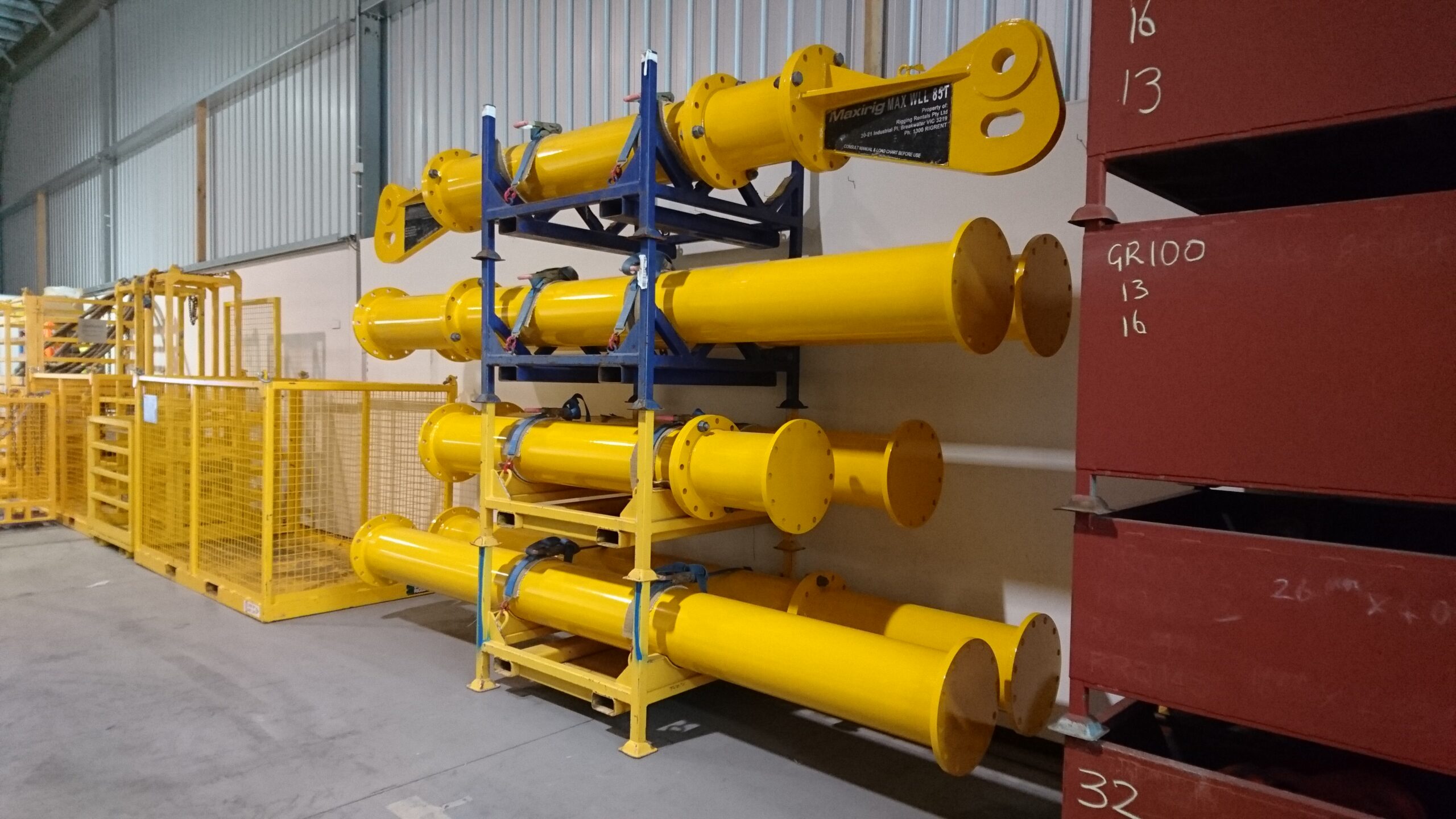

Modular Spreader Beams are ideal for when a variety of spreader lengths are required. They can be quickly adapted to various lengths on-site. The Maxibar range of spreaders can offer a solution for your job.a
Modular spreader beams from Maxirig. Maxirig provide superior quality lifting products engineered and manufactured in Australia. Our modular spreader beams are manufactured and maintained to the highest standards and supplied with current certification. Modular spreader beams specifications listed below.
Lifting Gear Hire & Sales also has a range of Telescopic Spreader Beams and End Cap Spreader Beams available for hire.
| WLL | Span | Tare Weight | Shackles Required | PDF Download |
|---|---|---|---|---|
| 4t | 0.5m to 1.5m @ 100mm increments | 33kg | 3.2t upper & 2t lower |  |

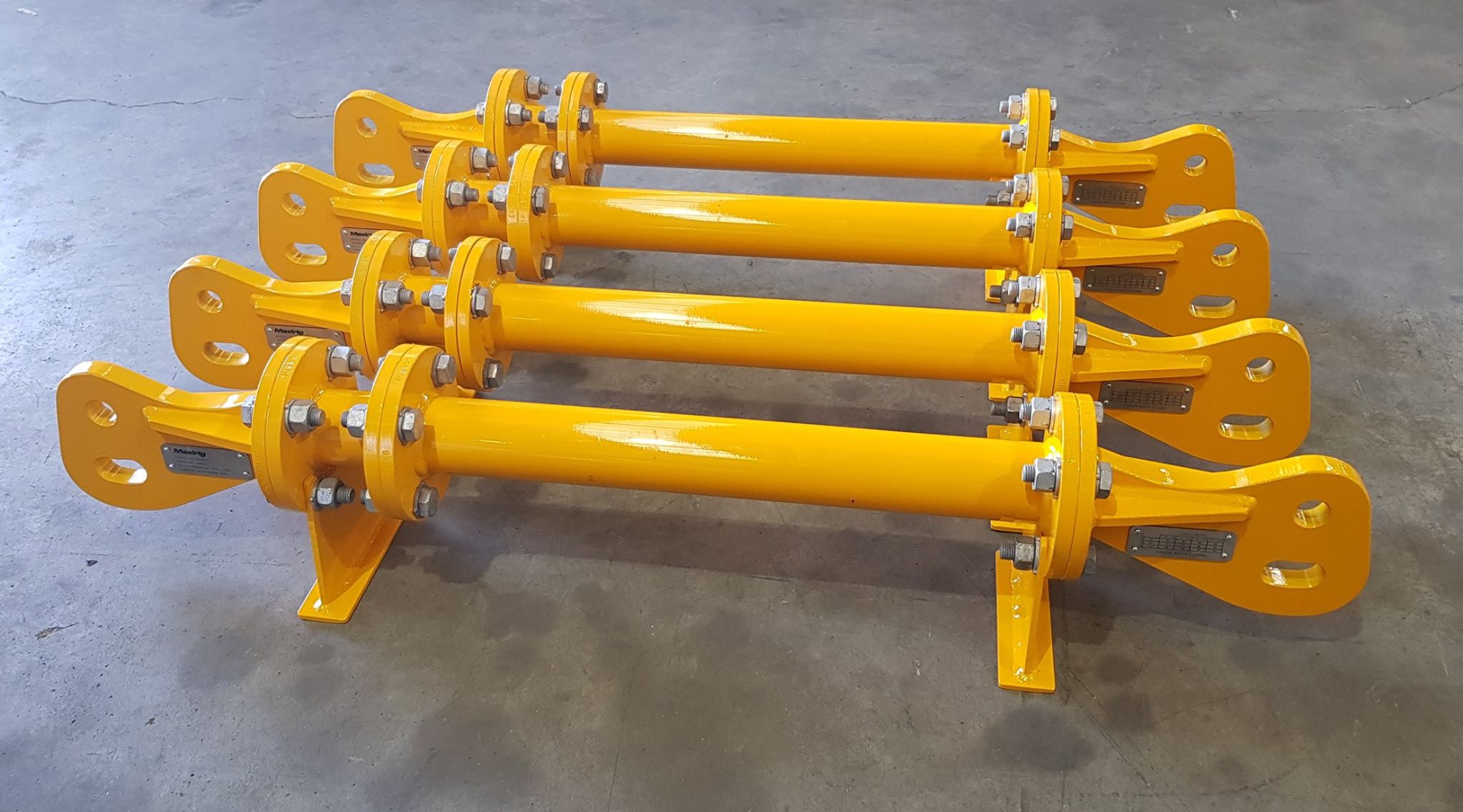

| 8t | 0.5m to 2.5m @ 100mm increments | 55kg | 6.5t upper & 4.7t lower | |
| 15t | 1m to 4m @ 100mm increments | 125kg | 12t upper & 8.5t lower | |
| 30t | 1.5m to 6m @ 500mm increments | 291kg | 25t upper & 17t lower | |
| 40t | 1.5m to 8m @ 500mm increments | 468kg | 25t upper & lower | |
| 60t | 1.5m to 11m @ 500mm increments | 941kg | 35t upper & lower | |
| 80t | 2m to 12m @ 500mm increments | 1220kg | 55t upper & lower | |
| 100t | 2m to 12m @ 500mm increments | 1895kg | 85t upper & 55t lower | |
| 120t | 2m to 16m @ 500mm increments | 2915kg | 85t upper & lower | |
| 145t | 2m to 20m @ 500mm increments | 3900kg | 85t upper & lower | |

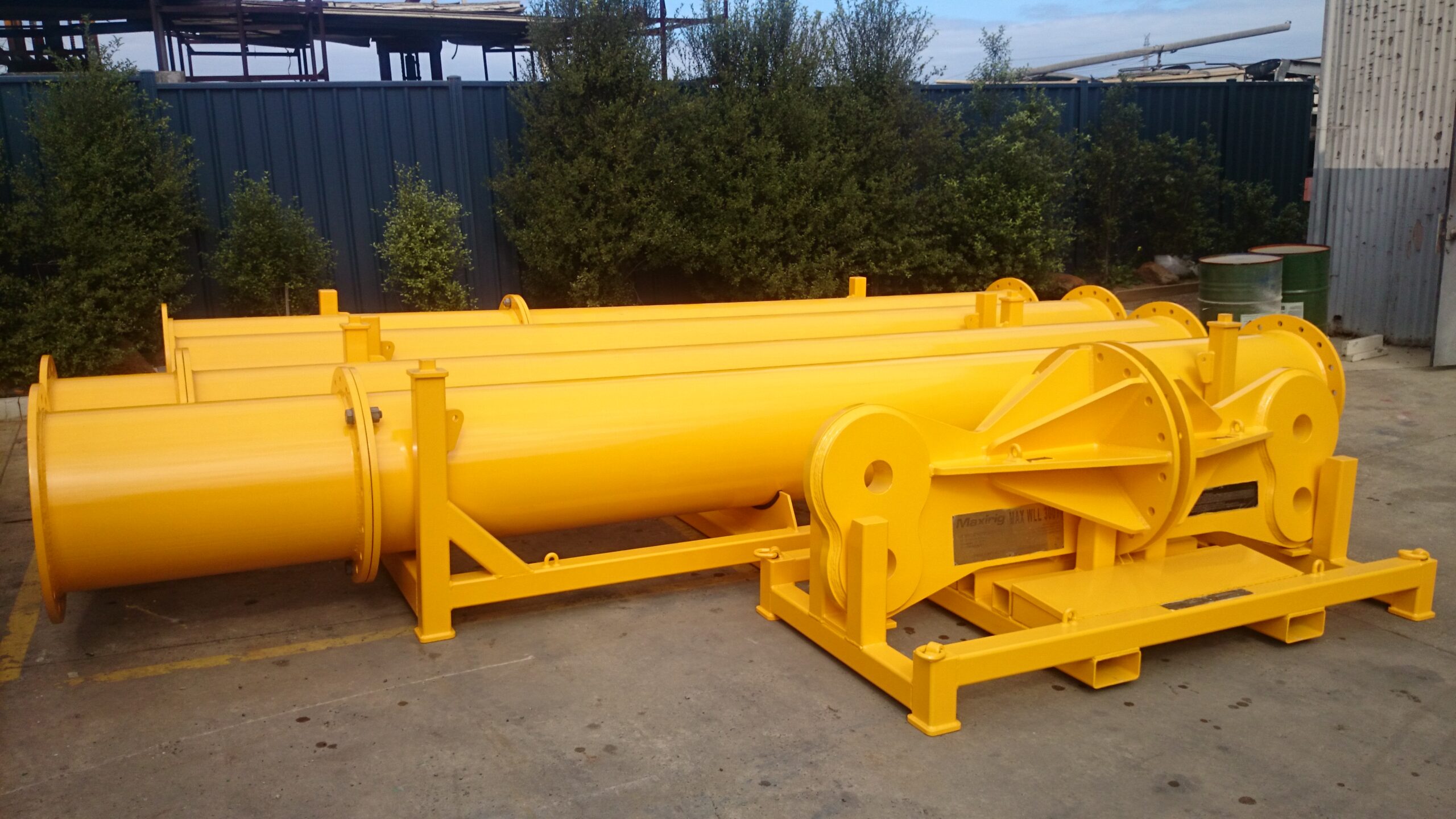

| 300t | 2m to 26m @ 500mm increments | 6600kg | 200t upper & 150t lower | |
*Please note capacities vary at different lengths
